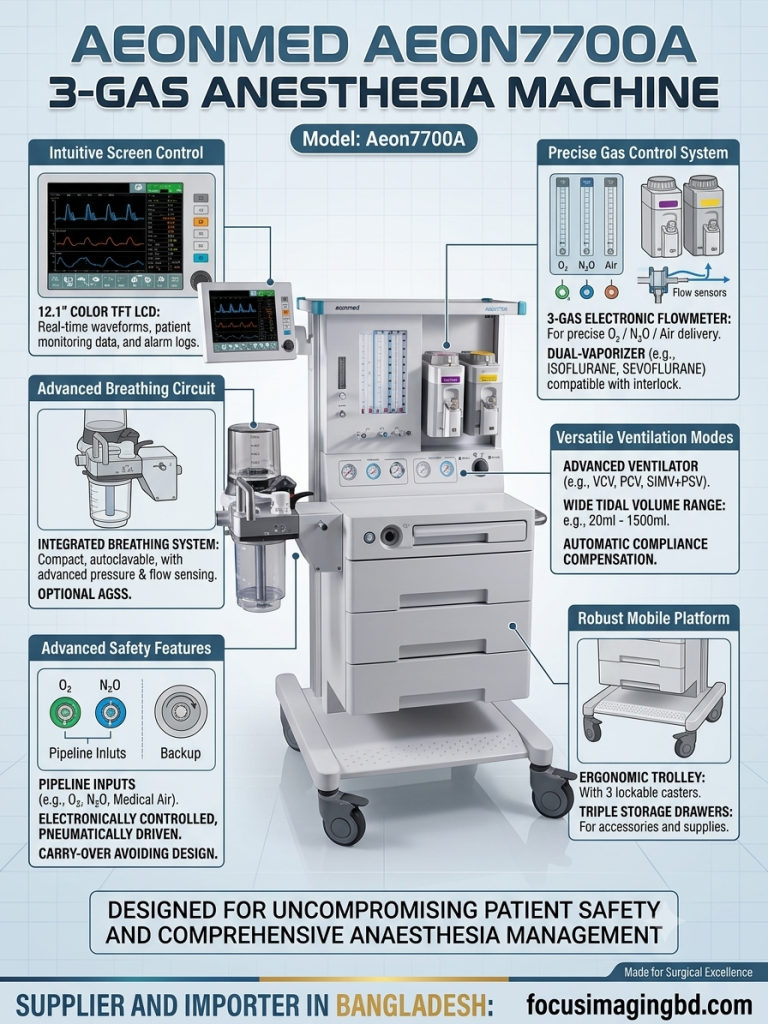

Elite Clinical Control: Aeonmed Aeon7700A 3-Gas Anesthesia Workstation in Bangladesh
High-acuity operating theaters require anesthesia systems that do more than just deliver gas. Complex, multi-hour surgeries demand an integrated workstation that provides advanced lung ventilation modes, high-precision gas mixing, and deep diagnostic insights.
The Aeonmed Aeon7700A 3-Gas Anesthesia Workstation—manufactured by respiratory healthcare leader Beijing Aeonmed—is an advanced, CE-certified platform designed for premium surgical suites. By upgrading to a 3-Gas system (\(O_{2}\), \(N_{2}O\), and Medical Air), clinical teams unlock low-flow anesthesia workflows that drastically reduce gas wastage while maximizing patient safety.
As the premier medical equipment supplier in Bangladesh, Focus Imaging BD supplies the genuine Aeon7700A workstation directly to leading corporate hospitals, teaching colleges, and surgical facilities nationwide.
The 3-Gas System Advantage: Why Upgrading Matters
While standard 2-gas machines rely entirely on Oxygen and Nitrous Oxide, the Aeon7700A integrates a dedicated Medical Air line. This configuration brings massive advantages to your operating theatre:
- Reduced Oxygen Toxicity: Permits anesthesiologists to blend Oxygen with Medical Air rather than Nitrous Oxide, completely eliminating the risks of hyperoxia and gas-driven atelectasis.
- Safer Long-Duration Surgeries: Highly recommended for prolonged neurological, cardiac, and pediatric surgeries where Nitrous Oxide use is contraindicated.
- Cost-Effective Low-Flow Anesthesia: Delivers micro-metered gas combinations safely, allowing hospitals to minimize the consumption of expensive volatile anesthetic agents.
Key Performance Features of the Aeon7700A
The Aeon7700A features heavy-duty electronic control systems paired with precise mechanical architecture.
- Advanced ICU-Grade Ventilation Modes: Equipped with highly responsive Volume Control (VCV), Pressure Control (PCV), Synchronized Intermittent Mandatory Ventilation (SIMV), and PS/CPAP modes to manage even the most critical respiratory cases.
- Ultra-Precise 6-Tube Flowmeter: Built with a highly precise 6-tube mechanical flowmeter assembly that delivers fine and coarse adjustments across all three gases (\(O_{2}\), \(N_{2}O\), and Air).
- Dual-Vaporizer Selectatec® Mounting: Employs an advanced mounting bar that fits two anesthetic vaporizers simultaneously. An elite safety interlock mechanics completely prevents the simultaneous activation of two agents.
- Large-Capacity Autoclavable Absorber: Features a 1.5L chemical bypass circle absorber designed to be fully disassembled and autoclaved at 134°C, preventing cross-contamination between patients.
- Expansive 10.4-Inch Display Screen: Features a large, clear user interface displaying real-time pressure, flow, and volume waveforms, alongside complete Spirometry loops for precise lung mechanic tracking.
Technical Specifications Matrix
| Operational Parameter | Aeon7700A Engineering Specifications |
|---|---|
| Gas Configuration | 3-Gas: Oxygen (\(O_{2}\)), Nitrous Oxide (\(N_{2}O\)), Medical Air |
| Ventilation Modes | IPPV, PCV, SIMV-VC, SIMV-PC, PS/CPAP, Manual, Standby |
| Tidal Volume Range | 20 mL to 1500 mL (Covers neonates, pediatric, and adult patients) |
| Respiratory Frequency | 2 to 100 breaths per minute (bpm) |
| Electronic PEEP | OFF, 3 to 30 \(cmH_{2}O\) |
| Integrated Display Panel | 10.4-inch multi-color TFT LCD Screen |
| Emergency Power Backup | Built-in battery supporting up to 120 minutes of continuous operation |
Intelligent Safety Controls & Hypoxic Guard
The Aeon7700A prioritizes absolute patient safety under clinical pressure. It features an integrated mechanical-pneumatic hypoxic guard protection loop that keeps oxygen concentration levels in the inspired gas matrix strictly above 21%. If the central pipeline or cylinder oxygen pressure falls below threshold limits, Nitrous Oxide flow drops instantly and automatically to prevent accidental patient hypoxia.
Why Sourcing from Focus Imaging BD is the Right Choice
Sourcing highly advanced life-support technology requires strong backend support. At focusimagingbd.com, we provide premium, turnkey engineering deployment to ensure your operating theatre works flawlessly.
- 100% Certified Importation: We supply brand-new, factory-calibrated machines directly from certified production lines with active manufacturer warranties.
- Complete OT Integration: Our specialized biomedical engineering team conducts structural line testing, gas compliance verification, and precision calibration during installation.
- Local Spare Parts Availability: We maintain an inventory of original replacement circuits, O-rings, vaporizers, and valves right here in Dhaka to minimize technical downtime.
Request Your Facility Assessment Today
Modernize your facility’s safety controls and expand your clinical capabilities with the Aeonmed Aeon7700A 3-Gas Anesthesia Workstation. Contact Focus Imaging BD today to schedule an on-site technical inspection, receive product brochures, or get a competitive quotation.
