Elevating Critical Care: Direct Import of the Aeonmed VG70 ICU Ventilator to Bangladesh
In demanding intensive care environments, clinical adaptability and uninterrupted operation are essential for patient survival. Managing acute respiratory distress syndrome (ARDS) requires highly precise ventilation matching, while internal patient transport demands a system independent of central infrastructure.
As the official direct importer of elite diagnostic and life-support technology in Bangladesh, Focus Imaging BD introduces the Aeonmed VG70 Critical Care Ventilator. The VG70 blends the advanced features of a full ICU respiratory workstation with the rugged portability needed for intra-hospital transit. Sourced directly from the manufacturer, we bypass third-party trading markups to deliver authentic equipment, full factory warranties, and competitive pricing across Bangladesh.
Product Overview & Technical Specifications
The Aeonmed VG70 features an integrated electronic turbine setup, removing any dependence on central wall air supplies. This design allows it to deliver smooth, continuous invasive and non-invasive ventilation (NIV) across mobile and stationary ICU configurations.
| Feature Category | Technical Specifications & Clinical Benefits |
|---|---|
| Model Name | Aeonmed VG70 Critical Care Ventilator |
| Patient Demographics | Universal flexibility covering Adult, Pediatric, and Infant patients (>3 kg). |
| Gas Supply Autonomy | Built-in high-performance internal turbine—operates entirely without an external compressed air source. |
| Tidal Volume Range | Highly responsive delivery adjustable from 20 mL up to 2000 mL. |
| Invasive Ventilation | Supports VCV (A/C), PCV (A/C), PRVC, SIMV (VCV/PCV/PRVC)+PSV, SPONT/CPAP+PSV, and BIVENT+PSV. |
| Non-Invasive Modes | Seamlessly shifts to NIV/CPAP, NIV-T, and NIV-S/T modes to accommodate awake or weaning patients. |
| User Interface Display | 12-inch TFT color touchscreen—fully detachable to allow remote adjustment and lower cross-infection risks. |
| Lung Mechanics Monitoring | Continuous tracking of Compliance (C), Resistance (R), PEEPi, RSBI, and Work of Breathing (WOB). |
| Special Procedures | Integrated Smart Suction (O₂ enrichment), synchronous Nebulization, Apnea Ventilation, and Insp/Exp hold. |
| Gas Monitoring Modules | Embedded FiO₂ sensor with upgradable side-stream EtCO₂ measurement ports. |
| Physical Componentry | Features a durable integrated metal exhalation valve that is completely autoclavable to optimize infection control. |
| Power Autonomy | Equipped with heavy-duty internal batteries supporting up to 4 hours of independent operation. |

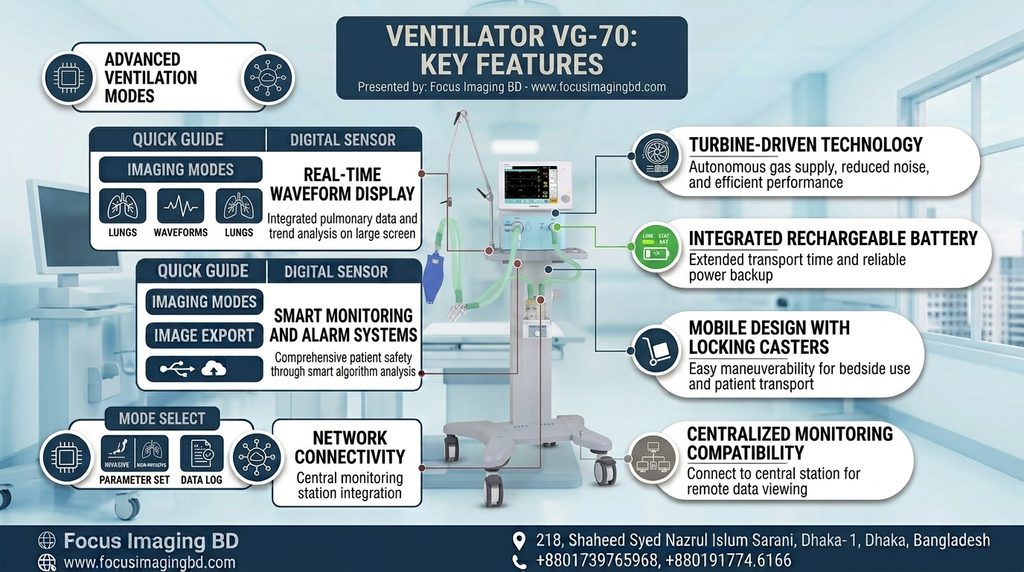

Core Advantages for ICU Departments
1. True Central Air Independence
Traditional ventilators tether your medical staff to structural wall terminals. The VG70 features a turbine drive mechanism that generates precise air pressure at quiet noise levels. This makes it an ideal option for hospitals with fluctuating gas infrastructures or units requiring intra-hospital transport to CT scans or operating suites.
2. Advanced Lung-Protective Toolkit
Using smart lung mechanics modeling, the software helps protect patient lungs through advanced modes like PRVC (Pressure Regulated Volume Control) and BIVENT (Bi-level ventilation). These adaptive modes preserve uniform tidal delivery while constantly modulating pressure thresholds, lowering the incidence of lung strain.
3. Intelligent Weaning Assessment
Managing patient exit pathways from mechanical support requires accurate biological indicators. The VG70 tracks and calculates the Rapid Shallow Breathing Index (RSBI) and Work of Breathing (WOB) on the fly. This real-time analysis gives clinicians the data needed to choose the ideal extubation window, minimizing the risks of re-intubation.
4. Infection Control Design
The detachable 12-inch color monitor allows respiratory therapists to track parameters at a distance from infected bedside zones. Paired with a robust, autoclavable metal exhalation assembly, the hardware minimizes hospital-acquired infections and simplifies device turnaround between patients.
Why Secure Your ICU Systems Through Focus Imaging BD?
When your hospital invests in the Aeonmed VG70 from Focus Imaging BD, you partner directly with the primary importer:
- Direct Import Pricing: We eliminate middleman distribution layers to deliver the best value to Bangladeshi healthcare facilities.
- Factory Calibration Standards: Our biomedical technicians handle deployment, software setup, and flow sensor validation right in your unit.
- Genuine Components Logistics: We maintain local inventories of original consumable components, autoclavable valves, and sensor kits to prevent clinical downtime.
- On-Site Professional Training: We conduct operational training loops for intensive care physicians, nursing crews, and support teams.
Modernize Your Critical Care Units Today
Empower your medical teams with a ventilation platform designed to protect lives across adult and pediatric departments alike. Contact Focus Imaging BD’s central office in Dhaka to request a product presentation, receive technical catalogs, or obtain a commercial price quote.
