High Precision, Minimal Dose: PLX118F High-Frequency Mobile FPD C-Arm System in Bangladesh
Complex orthopedic setups, spinal fixations, and minimally invasive trauma surgeries require flawless intraoperative visualization. Surgeons need real-time, high-contrast anatomical data without subjecting the patient or the surgical team to unnecessary x-ray scatter.
The Perlove Medical PLX118F High-Frequency Mobile Digital FPD C-Arm System is a premier, flat-panel detector surgical x-ray workstation engineered to deliver micro-detail resolution. By swapping out old-school image intensifiers for an advanced dynamic Flat Panel Detector (FPD), the PLX118F provides distortion-free field views alongside massive radiation savings.
As Bangladesh’s leading medical equipment supplier, Focus Imaging BD imports, calibrates, and provides technical support for the genuine PLX118F system—bringing safety and clarity directly to operation theaters across the country.

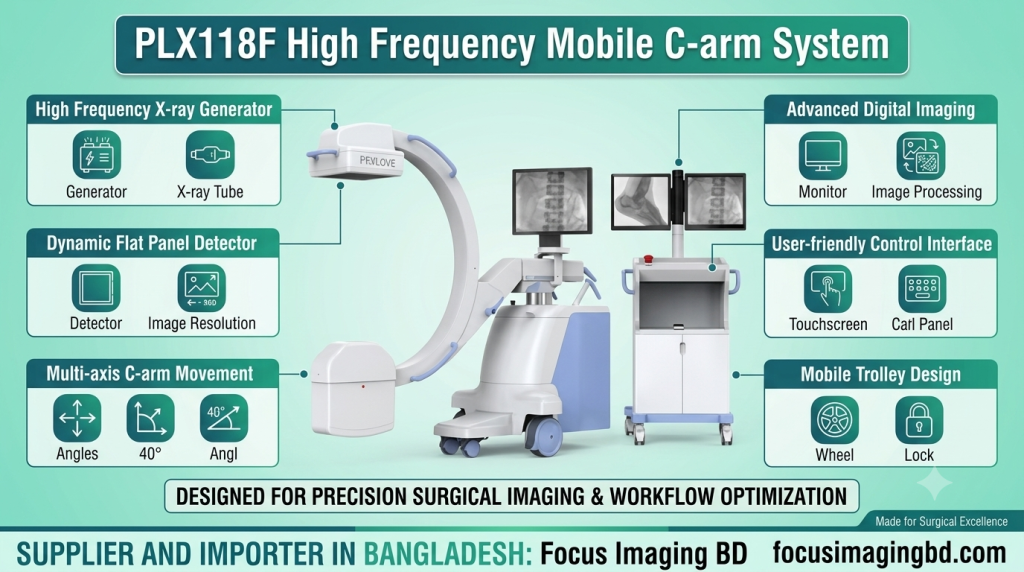

Technical Advantages of the PLX118F C-Arm Workstation
The PLX118F combines specialized x-ray generation with modular mobility to handle the most demanding operating room schedules.
- Dynamic Flat Panel Detector (FPD): Outfitted with a premium 9×9 inch amorphous silicon dynamic flat panel detector. Unlike older image intensifiers, the FPD yields over 22% more anatomical coverage and completely eliminates edge warping or visual distortions.
- 110 kHz High-Frequency Inverter Power: Uses an independently developed 5.0 kW, 110 kHz high-frequency monoblock generator. This high frequency eliminates soft ray generation, sharpening image output while minimizing radiation intake.
- Intelligent Low-Dose Pulsed Fluoroscopy: Features automated digital pulse modes and variable-frequency pulse technologies. This allows the equipment to capture sharp imagery at a fraction of the radiation dosage used by traditional continuous fluoroscopy machines.
- Electric Auxiliary Support Arm: Engineered with a counterbalanced frame and a unique electric auxiliary support arm. This design guarantees perfectly smooth, stable mechanics, preventing the structural drifting that can ruin delicate surgical alignments.
- Multi-Monitor Review Station: Outfitted with specialized medical-grade high-resolution LCD monitors. This configuration allows surgeons to review real-time live exposure data side-by-side with historical reference scans.
- DICOM 3.0 Compatibility: Integrates seamlessly with hospital PACS and network servers. This allows surgical reports, video sequences, and frame captures to transfer immediately to the hospital’s central digital storage.
Technical Specifications Matrix
| Engineering Parameter | PLX118F Performance Specification |
|---|---|
| Generator Output / Frequency | 5.0 kW / 110 kHz |
| X-ray Tube Voltage Range | 40 kV to 120 kV |
| Detector Technology | Amorphous Silicon Dynamic Flat Panel (FPD) |
| Detector Active Area | 9 inches × 9 inches (approx. 23cm × 23cm) |
| C-Arm Mechanical Dimensions | Focus-to-Screen (SID): 1000mm | Clearance: 800mm | Arc Depth: 660mm |
| Orbital & Horizontal Movement | Orbital Sliding: 135° | Horizontal Rotation: 360° |
| Operational Control Suite | Graphic LCD Touchscreen with Anatomical Programmed Radiography (APR) |
Departmental Adaptability
The PLX118F functions as an omnidirectional, multi-specialty workspace tool across critical hospital wards:
- Orthopedic & Joint Surgery: Simplifies fracture reduction, alignment testing, and nail/plate placement under tight visual guidance.
- Spine & Neuro Surgery: Delivers ultra-sharp deep cavity views necessary for transpedicular screw positioning.
- Gastroenterology & Urology: Offers smooth, real-time tracking for catheter guidance, stent placements, and contrast-dye tracking.
Why Partner with Focus Imaging BD?
Procuring high-end intraoperative x-ray units requires choosing a vendor capable of managing long-term structural and regulatory support. At focusimagingbd.com, we provide total medical engineering solutions:
- Direct Factory Imports: We deliver brand-new, factory-calibrated Perlove Medical hardware complete with original manufacturing certifications.
- Lead Shielding & Safety Consultations: Our team assists your facility with room layout advice and dosimeter alignment checks to satisfy local safety standards.
- Proactive Technical Care: We stock original replacement boards, switches, grids, and filters to resolve any technical service needs with minimal delay.
Upgrade Your Surgical Precision Today
Equip your surgical teams with the vision and control offered by the Perlove PLX118F Mobile FPD C-Arm System. Contact Focus Imaging BD today to receive official brochures, request a site evaluation, or get a custom quotation for your theater.
