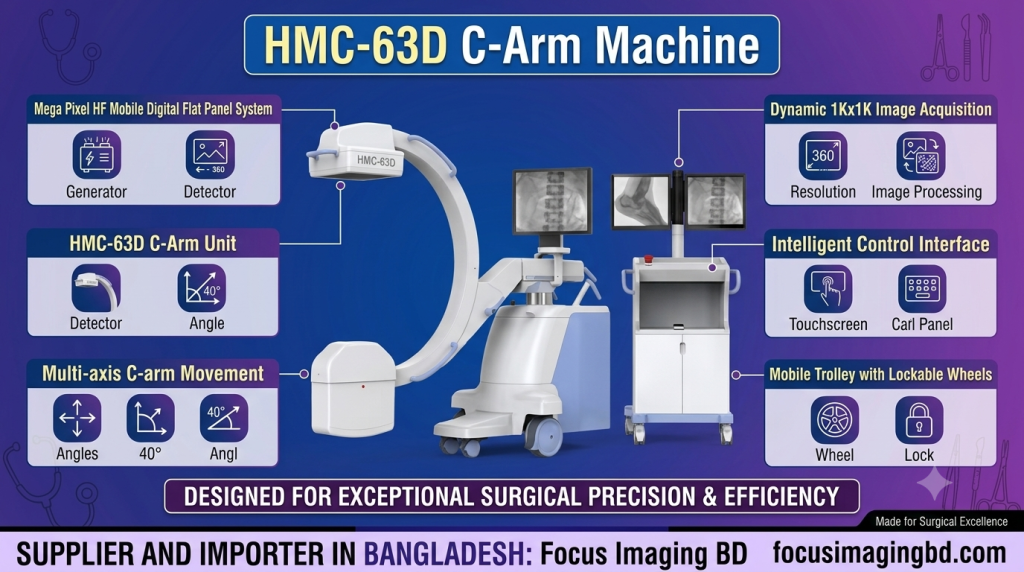

HMC-63D: High-Frequency Mobile Digital Flat Panel C-Arm System
Focus Imaging Bangladesh is your premier importer and supplier of the HMC-63D C-Arm Machine, a cutting-edge mobile imaging solution designed for high-precision surgical guidance. This system integrates advanced digital flat-panel technology with a powerful high-frequency generator to deliver crystal-clear, real-time images while minimizing radiation exposure.
Product Overview
The HMC-63D is a “Mega Pixel” high-frequency mobile digital C-arm specifically engineered for demanding surgical environments. Its compact design and versatile maneuverability make it the perfect choice for orthopedic, spinal, urological, and general surgical procedures in Bangladesh’s leading hospitals and clinics.
Key Features
- Dynamic Flat Panel Detector (FPD): Utilizes a 20.48cm x 20.48cm Amorphous Silicon CsI detector, providing superior spatial resolution and a wider dynamic range compared to traditional image intensifiers.
- High-Power Performance: A 6.3kW high-frequency generator ensures stable X-ray output, supporting both continuous and pulse fluoroscopy for complex interventions.
- Dual Focus X-ray Tube: Equipped with a rotating anode and fine focal spots (0.3mm/0.6mm) to capture high-definition details of bone structures and soft tissue.
- Intelligent Interface: Features a 12-inch color touch screen console on the C-arm gantry for intuitive control, alongside a large 27-inch high-resolution LCD monitor on the workstation.
- Precision Maneuverability: Fully counter-balanced movements with electric vertical lifting and wide orbital rotation allow for effortless positioning around the patient.
- Radiation Safety: Advanced pulse fluoroscopy technology significantly reduces the cumulative dose to both the patient and the surgical team without compromising image clarity.
Technical Specifications
| Component | Specification |
|---|---|
| Max Power Output | 6.3 kW |
| Detector Type | Dynamic Flat Panel (A-Si CsI) |
| Detector Size | 20.48 cm x 20.48 cm |
| Radiography Range | 40kV ~ 130kV |
| Fluoroscopy Range | 40kV ~ 125kV |
| Anode Type | Rotating Anode (Double Focus: 0.3/0.6mm) |
| Vertical Movement | ≥400 mm (Electric) |
| Orbital Range | 135° (-45° to +90°) |
| Monitor | 27″ LCD with integrated PC workstation |
Clinical Applications
The HMC-63D is optimized for a wide array of medical specialties:
- Orthopedics & Traumatology: Fracture reduction and internal fixation.
- Spinal Surgery: Real-time guidance for pedicle screw placement.
- Urology: Nephrolithotomy and cystoscopy procedures.
- General Surgery: Gallbladder, abdominal, and thoracic interventions.
Service & Support by Focus Imaging Bangladesh
When you partner with Focus Imaging Bangladesh, you receive more than just equipment. We provide:
- Direct Importation: Guaranteed authentic machines with original manufacturer warranty.
- On-Site Training: Comprehensive training for your surgical and radiological staff.
- Planned Maintenance: Regular servicing to ensure peak performance and longevity.
Elevate your surgical precision today.
Request a Quote from Focus Imaging Bangladesh or call us to schedule a product demonstration at your facility.
