Seamless Vital Signs Tracking: The Clinical Impact of the K12 Patient Monitor
In high-acuity environments like Intensive Care Units (ICUs), High Dependency Units (HDUs), and Operating Theatres, continuous physiological monitoring is paramount. Clinicians rely on unwavering data accuracy to identify clinical deterioration and make split-second, life-saving adjustments.
The Creative Medical K12 Patient Monitor has rapidly become a standard-bearer for reliable, multi-parameter bedside diagnostics. Sourced and distributed exclusively by Focus Imaging BD—the official importer and supplier in Bangladesh—this robust medical monitor is bridging the gap between complexity and usability in healthcare settings across the country.

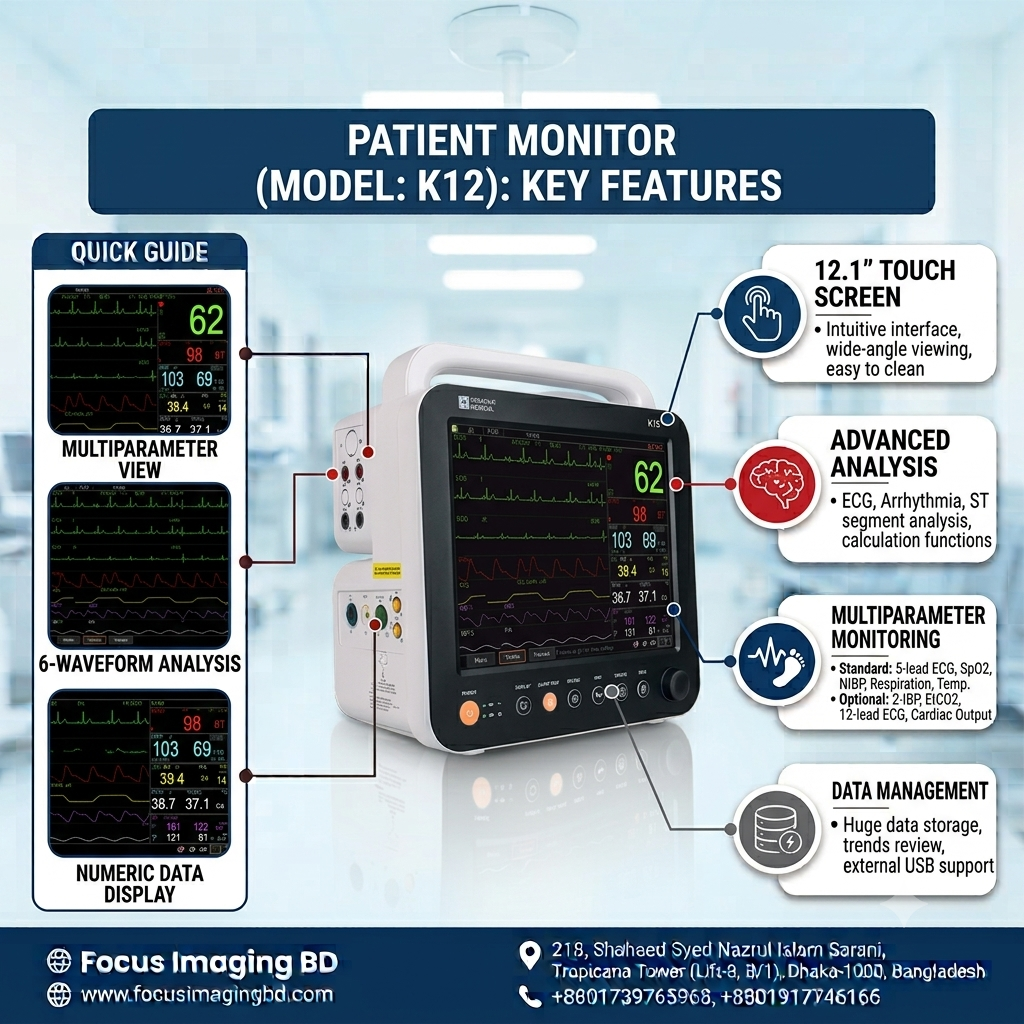

Key Clinical Advantages of the K12 Patient Monitor
1. Intuitive User Interface & Display Dynamics
The K12 features a generous 12.1-inch high-resolution color display, with an optional intuitive touchscreen module that mimics standard Windows-style layouts. It accommodates standard viewing, large-font displays, and dedicated respiratory or trend screens. The monitor handles up to 13 distinct on-screen waveform traces, providing comprehensive multi-system data views without cluttering the interface.
2. Advanced Multi-Parameter Diagnostics
Beyond tracking base parameters, the K12 incorporates sophisticated mathematical algorithms to assist medical staff:
- Cardiology: Provides S-T segment analysis alongside automated detection for 20 unique types of arrhythmia.
- Pulse Oximetry: Employs digital SpO2 technology engineered to resist motion artifacts and ambient light interference, ensuring true readings even during low perfusion.
- Non-Invasive Blood Pressure (NIBP): Allows customized, user-defined measuring cycles up to a 5-phase execution pattern.
3. Data Archiving & Systems Connectivity
The K12 architecture holds an expansive internal flash memory storage framework. It saves up to 4,800 data points of NIBP readings and captures logs for dozens of parameter alarm events. Equipped with built-in USB ports, Wi-Fi, and LAN modules, the K12 supports the standard HL7 medical data transfer protocol, establishing seamless communication with hospital Central Monitoring Systems (CMS) and electronic medical records.
Technical Specifications Overview
For medical procurement boards, biomedical technicians, and administrative decision-makers, here is the technical blueprint of the K12 system:
| Feature | Technical Specification Details |
|---|---|
| Display Panel | 12.1″ Color TFT Screen, LED Backlit, Optional Touchscreen |
| Standard Parameters | 3/5-Lead ECG, SpO2, NIBP, Resp, Temp, Pulse Rate |
| Optional Upgrades | 12-Lead ECG, EtCO2 (Capnography), Dual Invasive Blood Pressure (IBP) |
| Heart Rate Range | 15 to 350 bpm (Beats Per Minute) |
| Low Perfusion SpO2 | Accurate readings down to 0.3% low filling states |
| NIBP Modes | Manual, Automatic (Interval tracking), and Continuous |
| Waveform Support | 9 configurations on-screen, expandable to 13 traces |
| Calculations Built-In | Drug dose concentration calculations & Titration Tables |
| Power Input | AC 100-240V, 50/60Hz |
| Internal Battery | Rechargeable Lithium-ion battery for 3+ hours transport runtime |
| Data Ports | USB data export, RJ45 Ethernet, and wireless networking |
Procuring Your K12 System from Focus Imaging BD
Securing advanced life-support instrumentation requires an authorized, accountable supply chain. Sourcing medical devices through parallel or unauthorized markets introduces severe risks of uncalibrated sensors, faulty software, or zero access to spare components.
At Focus Imaging BD, we lean directly on our foundational motto: “Your trusted medical equipment supplier.” When you choose us to outfit your clinical wards, you secure:
- Authentic, factory-sealed Creative Medical technology imported through official regulatory channels.
- Long-term warranty security covering the main processor and standard accessories.
- Specialized deployment support, user training for clinical staff, and precision calibration from trained biomedical engineers.
Upgrade Your Hospital Infrastructure Today
Equip your medical staff with the visual and diagnostic tools required to sustain top-tier critical care. For customized price points, bulk facility orders, or live equipment demonstrations, contact our corporate headquarters:
- Office Address: 218, Shaheed Syed Nazrul Islam Sarani (Topkhana Road), Tropicana Tower (Lift-8, B/1), Purana Paltan More, Dhaka-1000, Bangladesh.
- Phone Channels: +8801739765968 / +8801917746166
- Corporate Email: mail@focusimagingbd.com
